Description
Article no.: 107A54479A
FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
● SSL-COMPATIBLE PROGRAMMABLE SERVO
# Compatible with CODE 10 (M12S, EXZES ZZ, MT-44)
Not Compatible with CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
● PGS SETTING GEAR-COMPATIBLE
● SUPER RESPONSE (SSR) MODE-COMPATIBLE
● HIGH RESPONSE (SHR) MODE-COMPATIBLE
● Li-Po 2 CELL-COMPATIBLE
● LOW PROFILED
● HIGH SPEED TYPE
● BRUSH LESS MOTOR
● FULL ALUMINUM CASE
● FULL METAL GEAR (Strengthening Gears)
● AL HEAT SINK
● Black Harness
Programmable Servo to be compatible with SSL & Telemetry at Launch
● Setting Adjustment by wireless from Radio
● Setting Adjustment to connect Servo with Setting Gear
● Regarding Temperature, Current, Voltage and Volume Position on Servo inside,
Telemetry-transmission can be passed to Radio.
# Initial Setting on Setting Gear is necessary.
● Setting Items
● SSL-CH (SSL Channel Setting) - STRETC (Stretcher Adjustment) - BOOST (BOOST Adjustment)
● D-Band (Dead Band Adjustment) - MV-MID (Middle Torque Adjustment)
● MV-END (Later Torque Adjustment) - BREAK (Break Adjustment)
● MV-HOLD (Power Adjustment at whole area) ?MV-FRQ (Feeling Adjustment at whole area)
● MAX-PW (MAX Duty Adjustment)
● Setting Gear is necessary for ?setting.
Speed
0.09 sec/60 (7.4V)
0.11 sec/60 (6.0V)
Torque
15.6 kg/cm (7.4V)
12.8 kg/cm (6.0V)

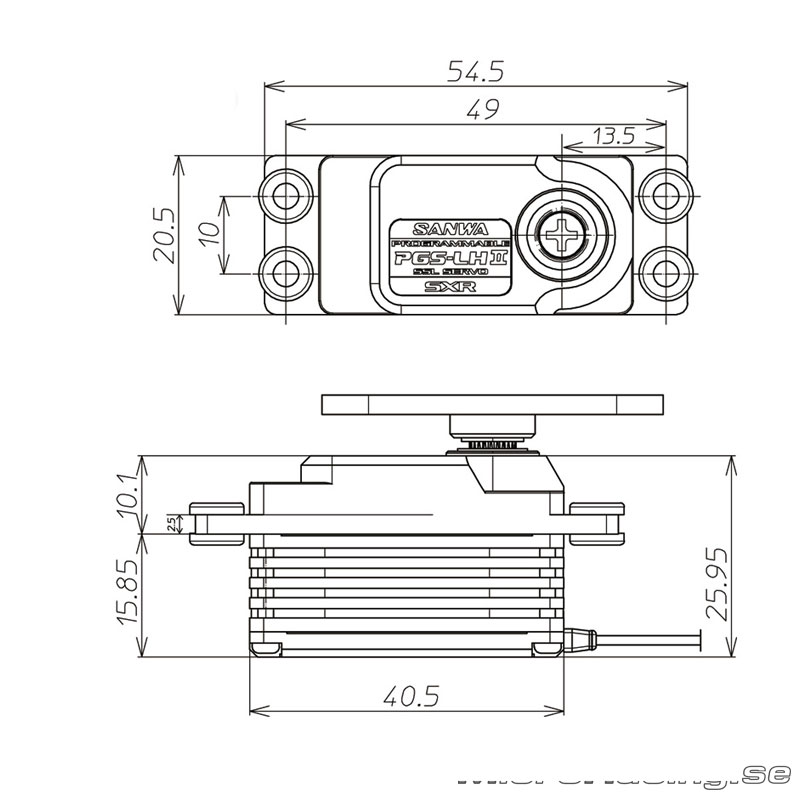

Dimensions
40.2 x 20.5 x 26.0 mm
Weight
53.0 g
